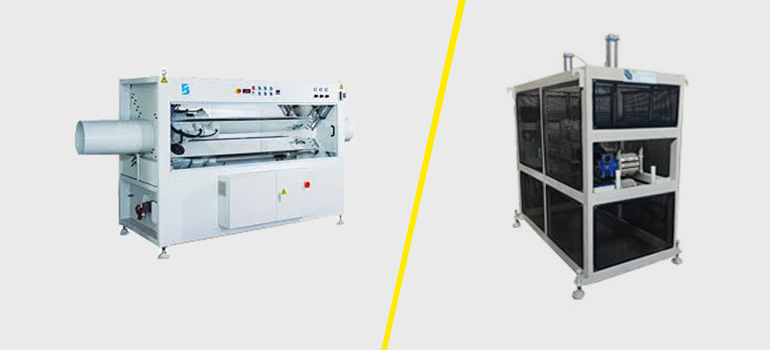

HAUL-OFF / TAKE UP

Features:

  • FRAME IS DESIGNED IN A WAY IN WHICH THE HAUL OFF CHAIN CAN BE EASILY CHANGED.
  • CLAMPING OF PIPE IS CONTROLLED PNEUMATICALY.AS ADVANCE SAFETY FEATURES,AN ADDITIONAL MECHANICAL SYSTEMIS ADDED TO LOCK THE PNEUMATIC SYSTEM.
  • MOTOR & GEAR BOX ARE CONTROLLED WITH HIGH CAPACITY DRIVE FOR SMOOTH OPERATIONS.
  • HOOK BARS ARE IN BUILT FOR LOADING-UNLOADING OF THE MACHINE & THERE IS A SYSTEM FOR LEVELLING THE MACHINE AS WELL.
  • POWDER COATING LAYER IS DONE ON THE MACHINE TO INCREASE THE SHELF LIFE.

MODEL BST-HO-110 BST-HO-160 BST-HO-200 BST-HO-250
PIPE RANGE 20-110MM 25-160MM 50-200MM 50-250MM
MOTOR 1.5KW 2.2KW 5KW 5KW
GEAR BOX MGM-VARVEL MGM-VARVEL MGM-VARVEL MGM-VARVEL
DRIVE 3 HP (DELTA) 5 HP ( DELTA ) 7.5 HP ( DELTA ) 7.5 HP ( DELTA )
