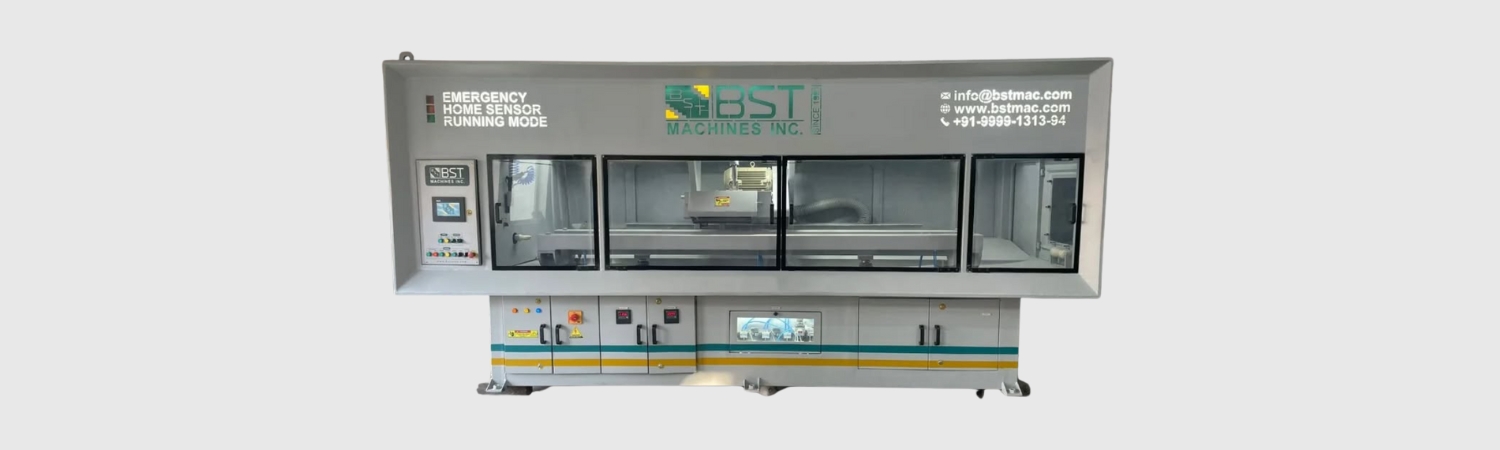

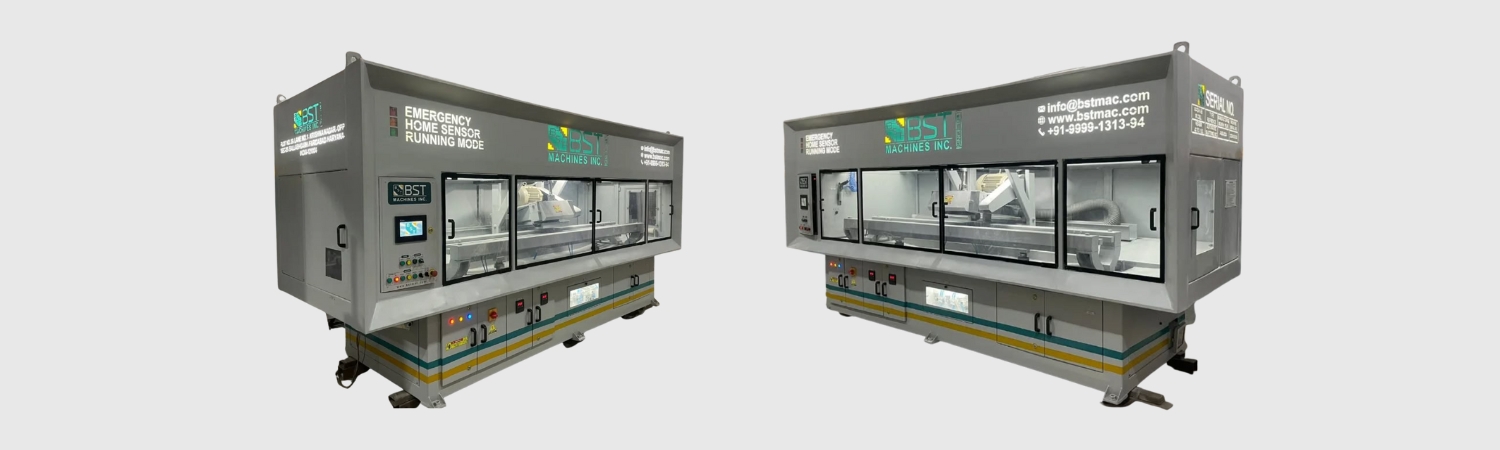

HIGH END PVC PIPE SLOTTING MACHINE
Features:
- COMPLETELY AUTO FUNCTIONAL WITH ONE PUSH START BUTTON.
- HIGH EFFICIENCY "DUST JET" TYPE VACCUM SYSTEM FOR DUST AND CHIP COLLECTION.
- IN BUILT HMI TO ACCESS AND RECORD ALL THE DATA.
- ADVANCE SAFETY FEATURES ADDED TO PREVENT ACCIDENTS AND MSHAPS.
- NO DEPENDENCY ON SKILLED LABOUR.
- HIGH END PRODUCTION.
| MODEL | BST-HEASM-40-110 | BST-HEASM-110-250 | BST-HEASM-200-400 |
|---|---|---|---|
| PIPE RANGE | 40-110MM | 110-315MM | 200-400MM |
| CONECTING LOAD | 18KW | 18KW | 18KW |
| MAIN MOTOR | 10HP | 15HP | 20HP |
| PIPE LENGTH | 3/6 METER | 3/6 METER | 3/6 METER |
| CUTTING INDEXING | 2-3-5 SIDE (OPTIONAL) | 3-4-5-6-7 SIDE | 3-4-5-6-7 SIDE |
| CUTTING SLOT WIDTH | 0.2-1.5MM | 0.5-3MM | 0.5-3MM |
| CUTTING STOCK | 350MM | 400MM | 400MM |
| BLOWER | TWIN | TWIN | TWIN |
