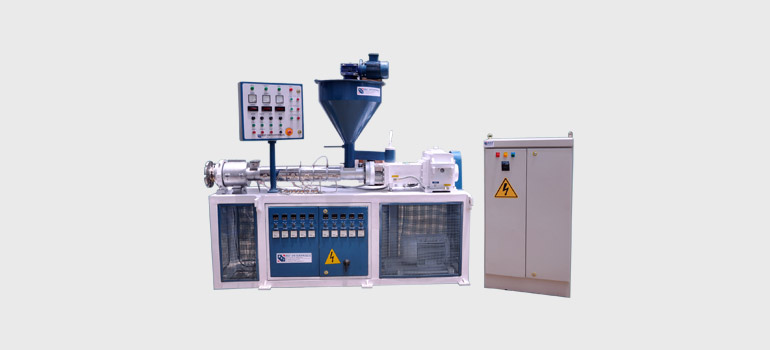

TWIN SCREW R-PVC EXTRUDER
Features:
- EASY TO OPERATE WITH ALL PARAMETERS OF ELECTRICALS& MECHANICALS.
- GEAR BOX & SCREW BARRELS ARE COMPLETELY MANUFACTURED IN-HOUSE THEREFORE ALL THE PARTS ARE IN READY STOCK.
- IMPRESSIVE & HI-TECH FUNCTIONING.
- ALL THE CONTROLLERS ARE USED OF LATEST STANDARDS.
- EASY INSTALLATION.
- ADDITIONAL SAFETY SENSORS ARE IN-BUILT IN THE MACHINE.
| MODEL | BST-52/18v | BST-52/22v | BST-52/25v | BST-65/18v | BST-65/22v |
|---|---|---|---|---|---|
| MAIN DRIVE | 11Kw. Ac | 15Kw. Ac | 18kw. Ac. | 18kw. Ac. | 30kw. Ac |
| LD. RATIO | 20 : 01 | 22 : 01 | 25 : 01 | 18 : 01 | 22 :01 |
| MAX. OUTPUT | 120kgs/hr. | 150 kg /hr. | 170kg/hr. | 200kg /hr. | 260kg /hr. |
| PIPE RANGE | 20-110mm | 20-160mm | 25-180mm | 25-200mm | 50-200mm |
| CONECTING LOAD | 50kw. 50hz | 60kw. 50hz | 65kw. 50hz | 70kw. 50hz | 80kw 50hz |
