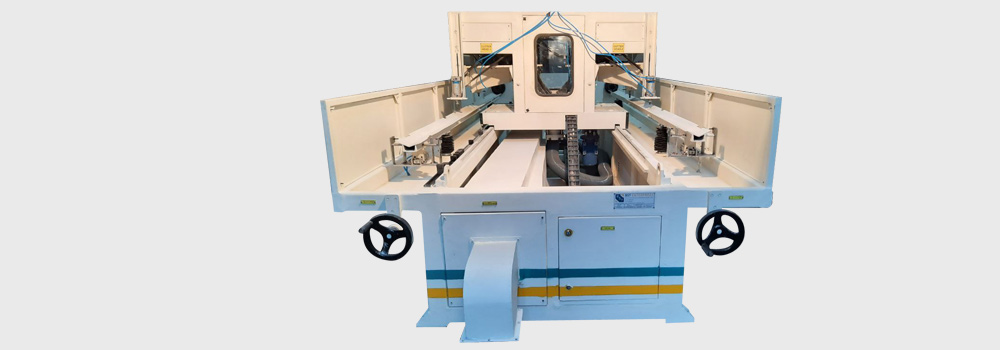

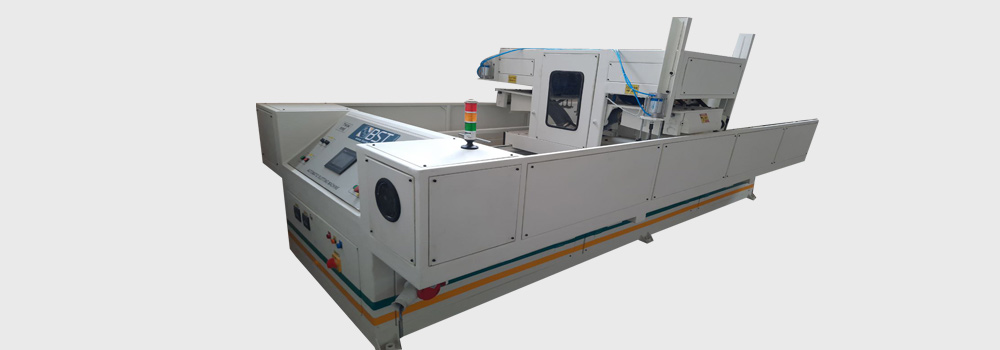

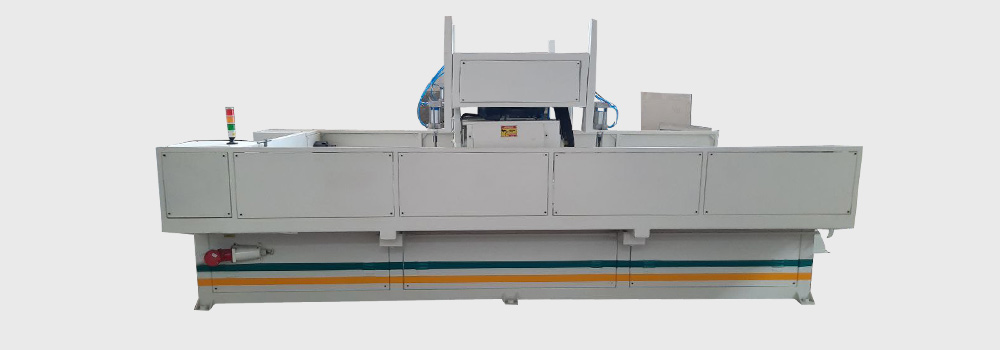

TWIN AUTOMATIC SLOTTING MACHINE
Features:
- COMPLETELY AUTOMATIC WITH CUTTING 2 PIPES AT A TIME .
- OPTIMUM FUNCTIONALITY AND RELIABLE PERFORMANCE.
- HIGH EFFICIENCY "DUST JET" TYPE VACCUM SYSTEM FOR DUST AND CHIP COLLECTION.
- LOW POWER CONSUMPTION AS COMPARED TO OUTPUT.
- BUILT WITH ADVANCE SAFETY FEATURES WHICH PREVENTS ACCIDENTS AND MISHAPS.
- TROUBLE FREE OPERTIONS.
- HMI DISPLAY TO ACCESS AND RECORD ALL THE DATA.
- AUTO CLAMPING OF PIPS THROUGH PNEUMATIC CYLINDERS.
| MODEL | BST-TASM-40-110 | BST-TASM-50-200 | BST-TASM-75-250 | BST-TASM-110-315 |
|---|---|---|---|---|
| PIPE RANGE | 20-110MM | 50-200MM | 75-250MM | 110-315MM |
| CONECTING LOAD | 18.6KW | 26KW | 26KW | 26KW |
| MAIN MOTOR | 10HP+10HP | 15HP+15HP | 15HP+15HP | 15HP+15HP |
| PIPE LENGTH | 3/6 METER | 3/6 METER | 3/6 METER | 3/6 METER |
| CUTTING INDEXING | 2-3-5 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL | 3-5-6-7 SIDE |
| CUTTING INDEXING | 2-3-5 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-6 SIDE (OPTIONAL) | 3-5-7 SIDE (OPTIONAL) |
| CUTTING SLOT WIDTH | 0.2-1.5MM | 0.3-2MM | 0.3-2MM | 0.5-3MM |
| CUTTING STOCK | 300+300MM | 350+350MM | 350+350MM | 400+400MM |
| BLOWER | 3HP | 3HP | 3HP | 3HP |
