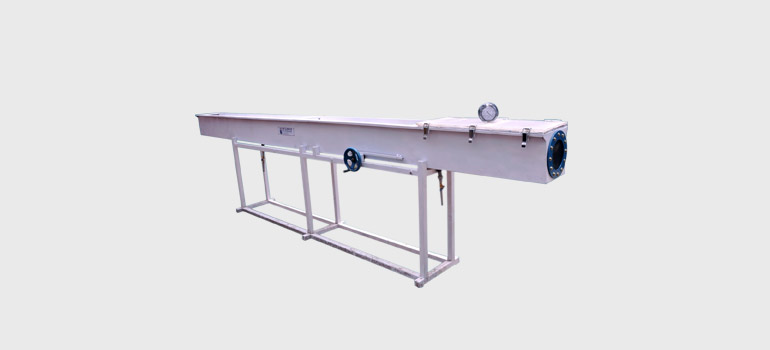

VACUUM CALIBRATION
Features:
- FRAME IS MADE OF HEAVY DUTY STRUCTURED PIPES WITH LEVELING GUIDE.
- COMPLETE TANK IS MADE UP OF SS-316 FOR RUST-FREE USAGE.
- SPRAY NOZZLES ARE IN-BUILT FOR HIGH PRESSURE ON PIPE.
- TRANSPARENT FOLDABLE DOORS ARE INCLUDED IN THE MACHINE.
- POWDER COATING LAYER IS DONE ON COMPLETE MACHINE.
| MODEL | BST-VCT-110 | BST-VCT-160 | BST-VCT-200 | BST-VCT-250 |
|---|---|---|---|---|
| PIPE RANGE | 20-110MM | 25-160MM | 50-200MM | 50-250MM |
| VACUUM PUMP | 2.2KW | 2.2KW | 2.2KW | 3.75KW |
| WATER PUMP | 2.2KW | 2.2KW | 2.2KW | 5KW |
| SIZE IN MM | 5000X490X1350 | 6000X500X1200 | 6000X500X1200 | 6000X500X1200 |
